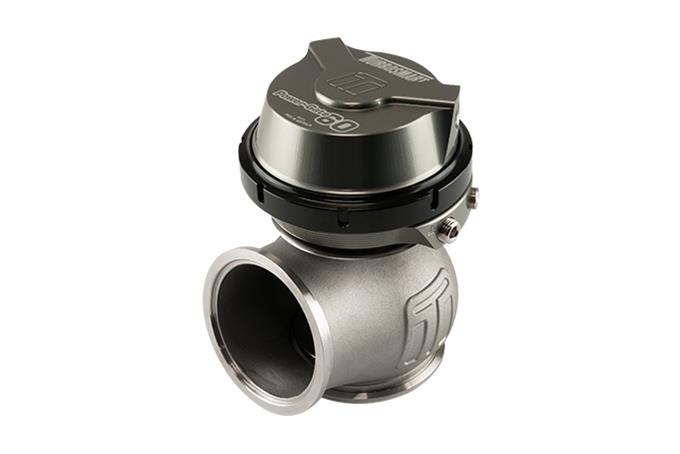

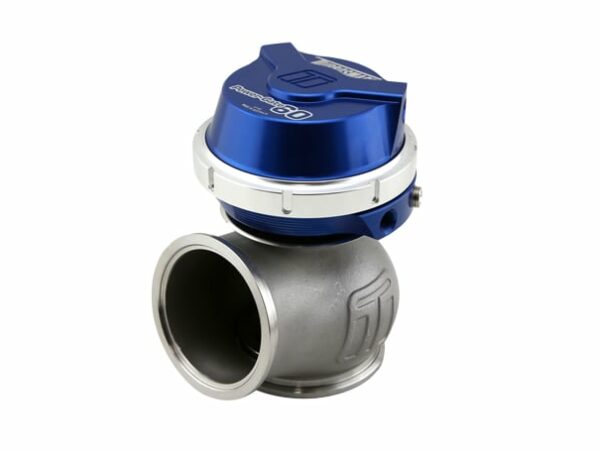

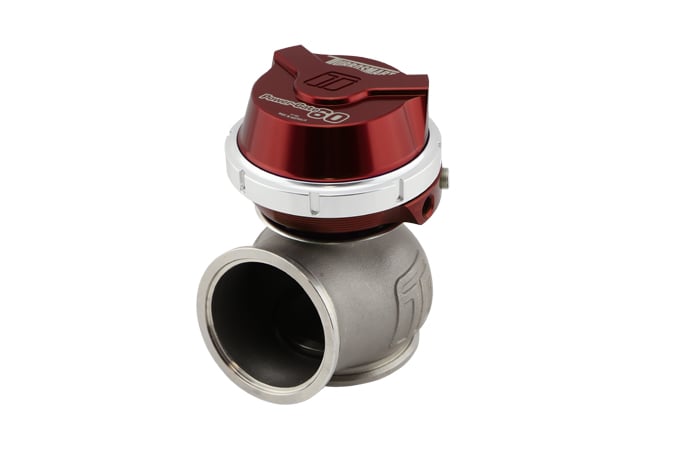

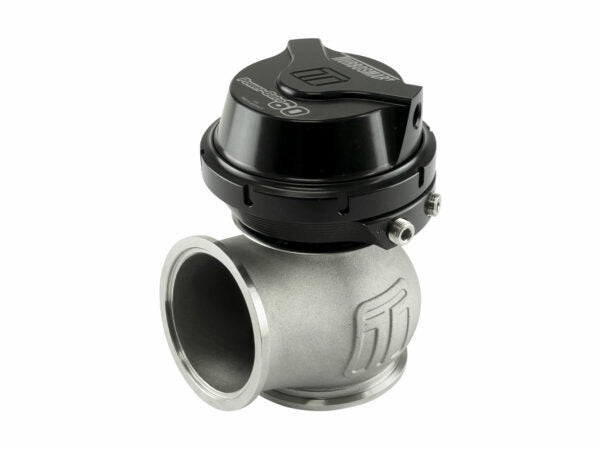

TURBOSMART Power-Gate 60mm External Wastegate Gen V

The GenV WG60 PowerGate60 External Wastegate is a highly effective 60mm external wastegate designed for Motorsport usage. As the largest wastegate in the Turbosmart GenV range and the leading 'poppet style' wastegate in the industry, it has been proven to provide superior thermal performance, durability, and flow control. The GenV offers extensive user customization options and is backed by CFD optimization and validation for maximum flow and thermal management. Featuring a unique collar-locking system, variable actuator cap and base for flexible routing of reference hoses, strap-type V-band clamps, optional liquid-cooling, and 1/8" NPT reference ports, this wastegate is a direct upgrade to all Gen4 Turbosmart wastegates.

Features

• Class Leading, Thermal Performance

• Class Leading, CFD & Bench Validated Flow Performance

• Class Leading Fatigue Resistance

• Nitronic 60 Valve Guide & High Temp 347 SS Body

• 17/7 PH Stainless Steel Springs

• Liquid Actuator Cooling Option

• Strap Type V-band clamps

What is in the Box?

The product features a GenV Wastegate Unit including all necessary springs, a GenV SS316 Valve seat, inlet and outlet V-Band Clamps and Flanges, mounting bolts and nuts, a master/slave collar tool, and 4 1/8" NPT plugs (1 installed). Additionally, 2 1/8" NPT nipples and a Turbosmart Decal are included.

Instructions:

• Installation Guide
• Data Sheet
