Odyssey Powersport Battery

Powersport vehicles need a powerful battery – one built to take the constant pounding that comes with the territory, whether it’s is on land, sea, or snow. Non-spillable AGM design means the ODYSSEY battery will roll with the curves, while its military-inspired design and extreme vibration resistance will cushion any blow.

How so much power is possible

ODYSSEY powersport batteries are made with flat plates made of 99% pure lead – not lead alloy, like many conventional batteries. Pure lead plates can be made thinner, so we can fit more of them in the battery. More ODYSSEY battery plates mean more plate surface area. And that means more power – twice as much as conventional batteries.

Packed with more power

Like many popular spiral-wound batteries, ODYSSEY powersport batteries employ Absorbed Glass Mat (AGM) technology to contain acid, allowing the battery to be installed even on its side. But the densely packed flat plates in ODYSSEY powersport batteries avoid the “dead space” between cylinders in a “six pack” design. The result is 15% more plate surface area — and that translates to more power!

Rated Operating Temperature -40°F (-40°C) to 113°F (45°C) Metal Jacket (MJ) Option increases rated operating temperature to 176°F (80°C)
All values shown are nominal unless otherwise noted

NEW PART NUMBER (Old Part Number)	Voltage	PHCA** 5 sec. [A]	MHPCA* [A]	MPCA* [A]	CCA* [A]	HCA* [A]	MCA* [A]	20 HR Rate [Ah]	10 HR Rate [Ah]	Reserve Capacity [Minutes]	Maximum Length [in (mm)]	Maximum Width [in (mm)]	Maximum Total Height [in (mm)]	Maximum Container Height [in (mm)]	Weight [lb (kg)]	Terminal	Maximum Torque [in-lb (Nm)]	Internal Resistance [mΩ]

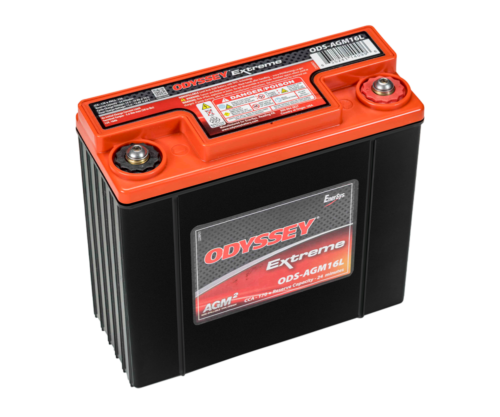

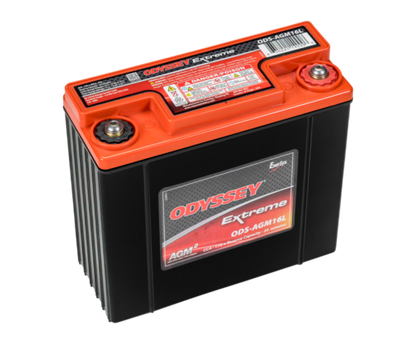

ODS-AGM16L (PC680)	12	520			170	350	280	16	16	24	7.2 (183)	3 (76)	6.4 (163)	6.6 (168)	15.4 (7.0)	M6 Receptacle	50 (5.6)	7

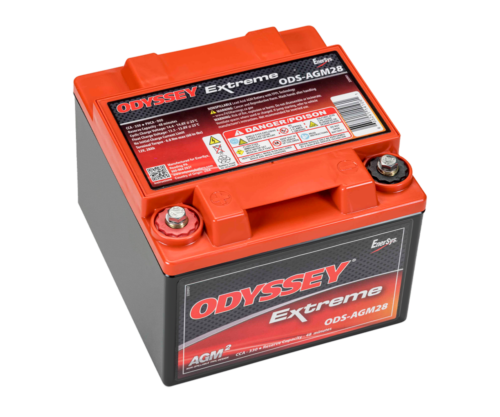

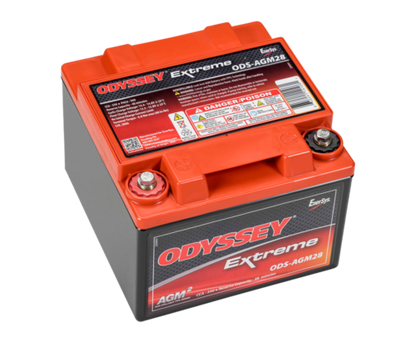

ODS-AGM28 (PC925L)	12	900			330	610	480	28	27	48	6.6 (168)	6.9 (175)	4.7 (119)	5 (127)	23.8 (10.8)	M6 Receptacle	60 (6.8)	5

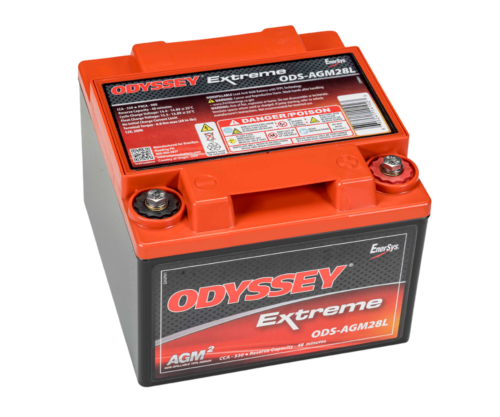

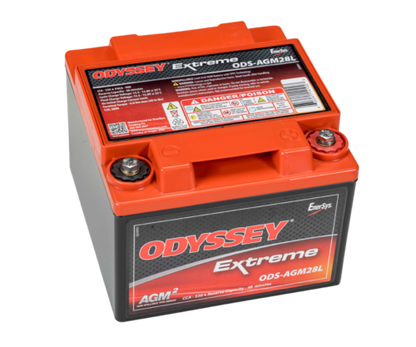

ODS-AGM28L (PC925)	12	900			330	610	480	28	27	48	6.6 (168)	6.9 (175)	4.7 (119)	5 (127)	23.8 (10.8)	M6 Receptacle	60 (6.8)	5
ODS-AGM40E (PC1100)	12	1100			500	800	650	45	43	87	9.8 (249)	3.8 (97)	8.1 (206)	7.7 (196)	27.5 (12.5)	M6 Stud	35 (3.9)	5.1

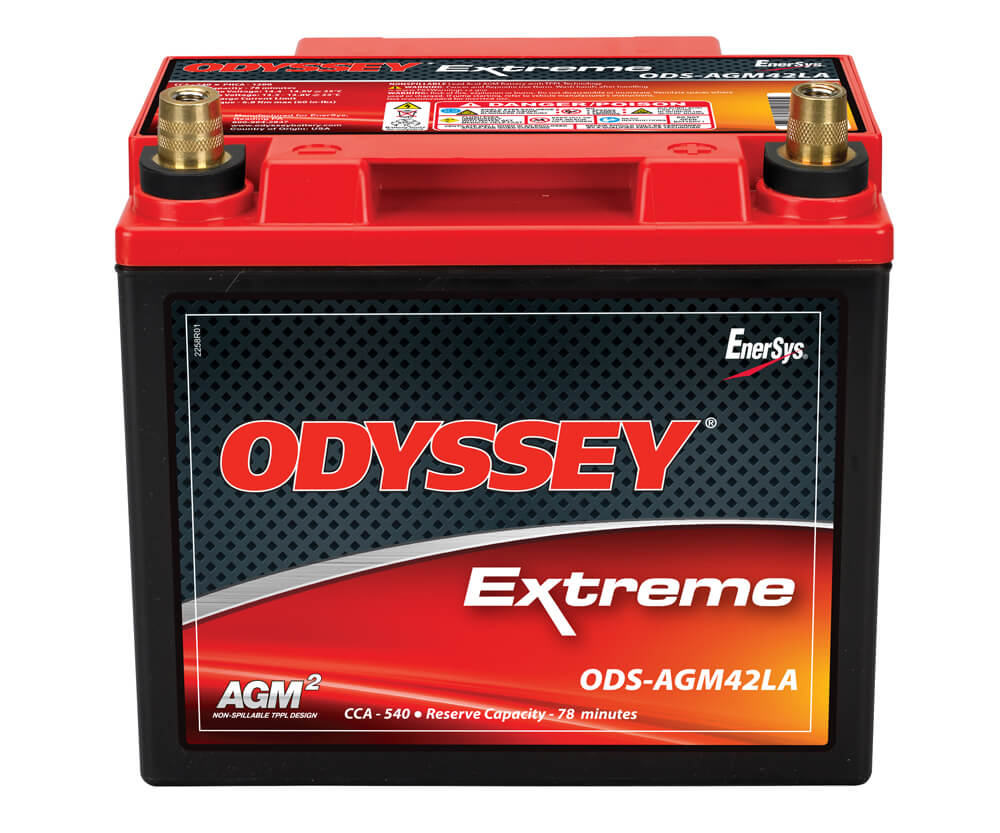

ODS-AGM42LA (PC1200T)	12	1200			540	860	725	42	40	78	7.8 (198)	6.5 (165)	7.5 (191)	6.7 (170)	38.2 (17.3)	SAE	N/A	4.5

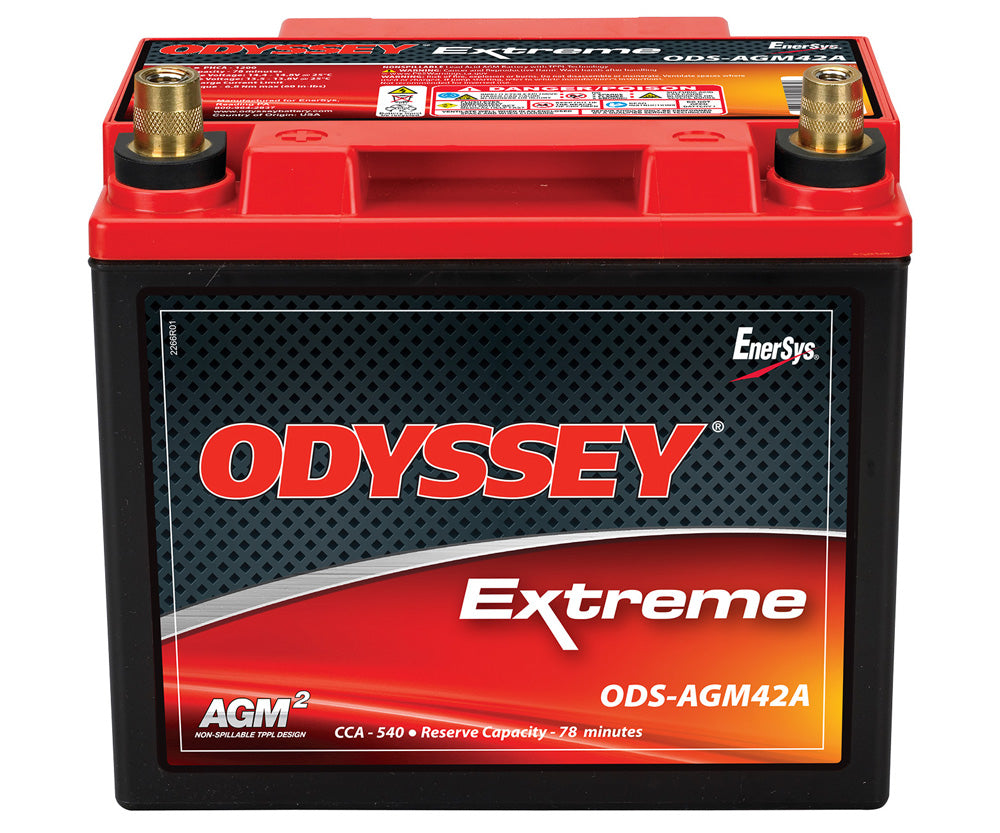

ODS-AGM42A (PC1200LT)	12	1200			540	860	725	42	40	78	7.8 (198)	6.5 (165)	7.5 (191)	6.7 (170)	38.2 (17.3)	SAE	N/A	4.5
ODS-AGM70A (PC1700T)	12	1550			810	1325	1175	68	65	142	13 (330)	6.6 (168)	7.8 (198)	6.9 (175)	60.9 (27.6)	SAE	N/A	3.5

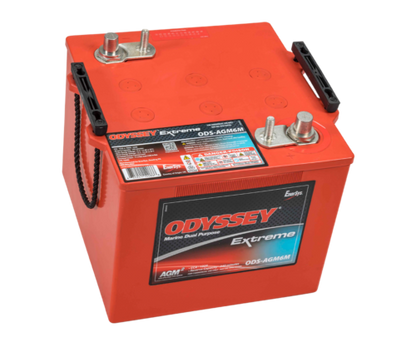

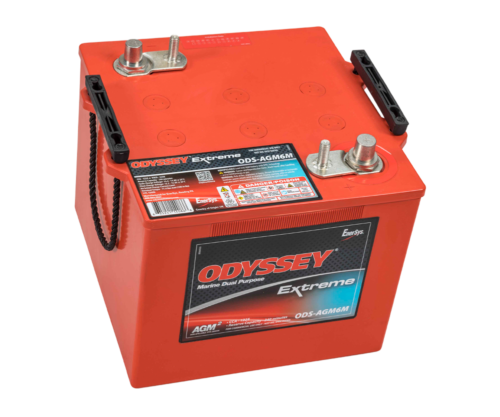

ODS-AGM6M (PC2250)	12	2250			1225	1730	1550	126	114	240	11.3 (287)	10.6 (269)	9.2 (234)	8.2 (208)	86 (39.0)	SAE and 3/8-16" Stud	100 (11) stud only	2.1

• *Cold Start Performance S.A.E J537 Apr 2016
• **Pulse Current

NOTES: This product is shipped via ground service exclusively to the Lower 48 Continental United States. Shipping is not available to Alaska, Hawaii, Puerto Rico, or any international locations.
