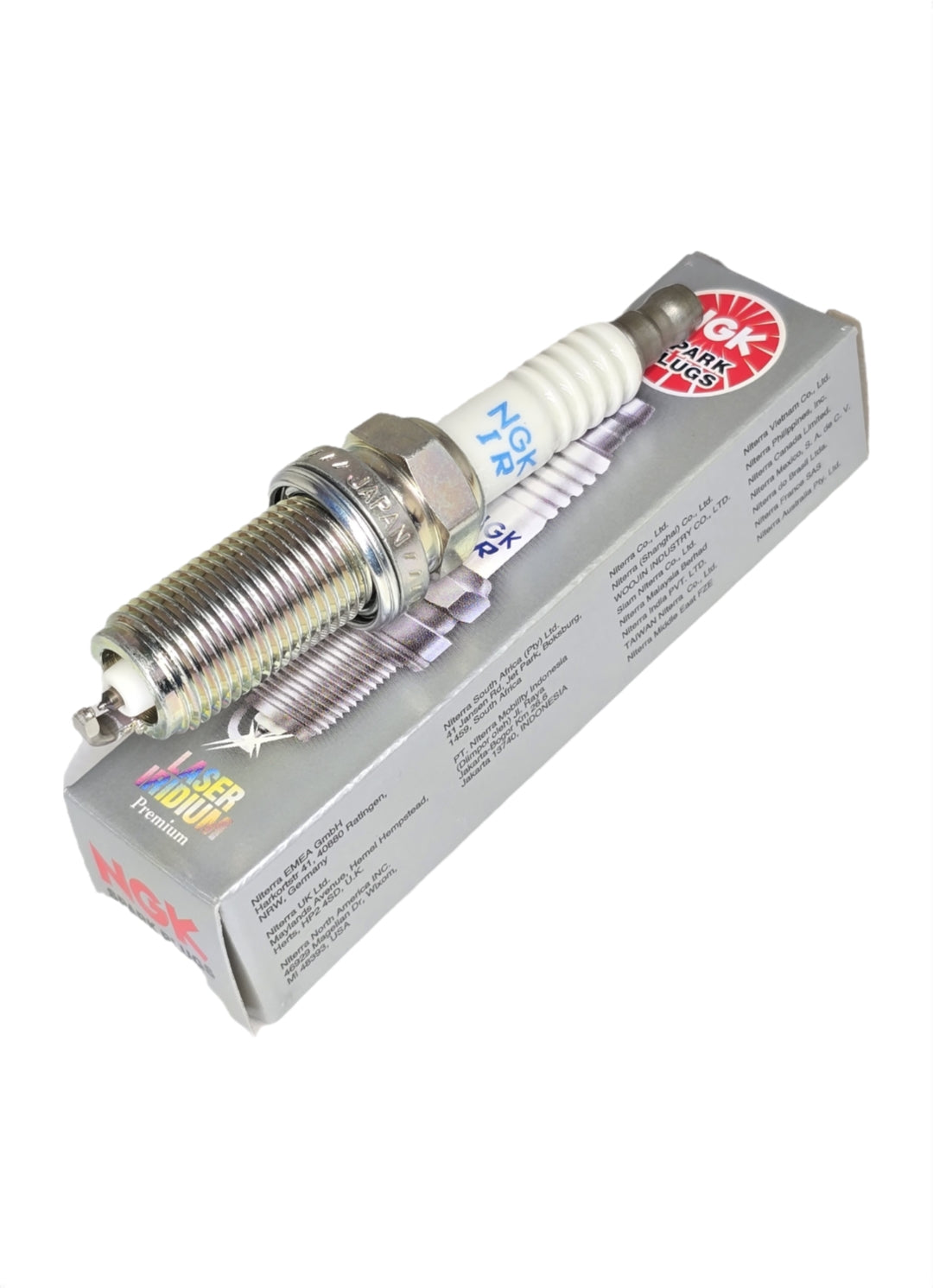

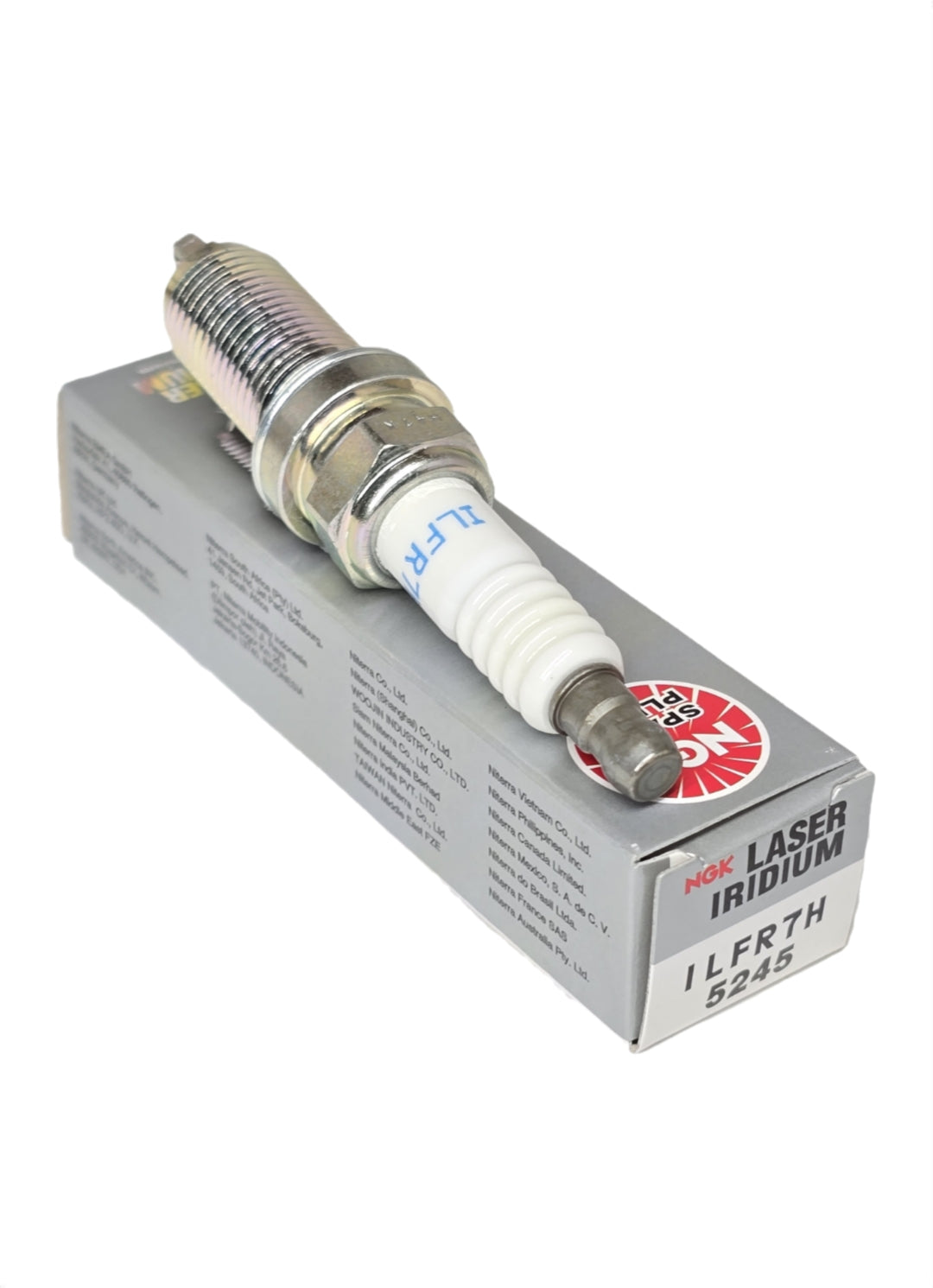

NGK (5245) ILFR7H Laser Iridium Spark Plug Evo 9

NGK (5245) ILFR7H Laser Iridium spark plugs are perfect for replacing the stock plugs in your daily driver Evo 9, providing a reliable and efficient option for your vehicle.

Note: Sold individually

Vehicle Fitment:

Lancer Evolution IX 2006

Shell

Thread Diameter: 14mm

Thread Pitch: 1.25mm

Seat Type: Gasket

Reach: 26.5mm (1.04")

Hex Size: 5/8" (16mm)

Terminal Type: Solid

Overall Height: ISO

Gap: .024" (0.6mm)

Center Electrode

Material: Iridium

Type: Fine Wire

Size: 0.6mm

Projection: Projected

Ground Electrode

Material: Platinum

Type: Standard

Shape: Taper Cut

Quantity: 1

Specifications

Resistor: Yes

Resistor Value: 5k Ohm

Heat Range: 7

Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

Part Information

Brand: NGK

Longevity: 100k Miles
