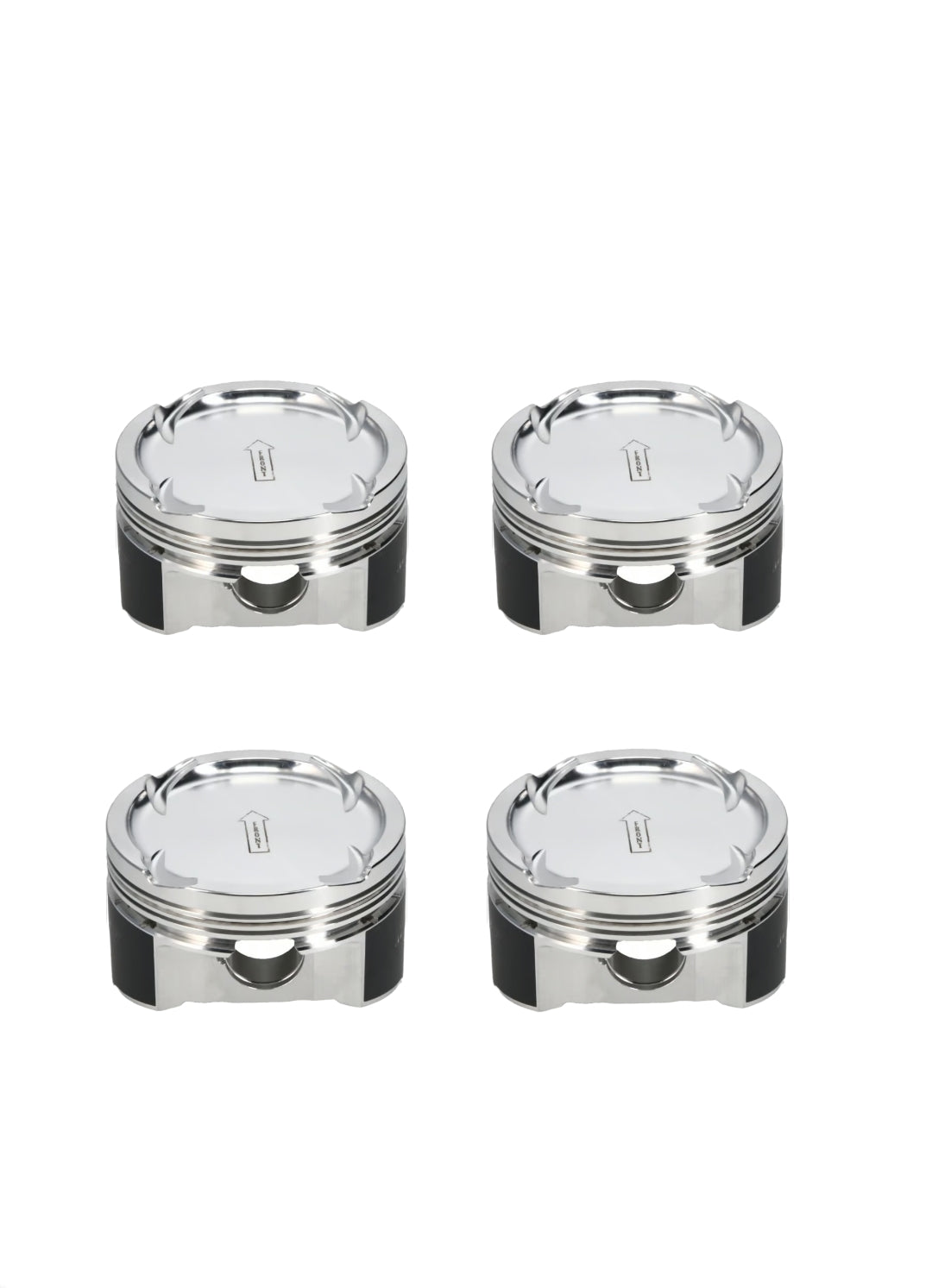

Manley Turbo Tuff Platinium Series Pistons Kit 2.0L (88mm Stroke & 150mm Rod) Evo 4-9/DSM 7-Bolt 4G63T

Experience ultimate performance with Manley Turbo Tuff Platinum Series Forged Pistons for the Lancer Evo 4-9 & DSM & 7-bolt 4G63T. Manley “Platinum Series” pistons feature 2618 alloy forgings, proven cam and barrel skirt profiles, tool steel wrist pins, and moly skirt coatings on select part numbers. Join the ranks of professional engine builders and tuners who rely on Manley pistons for superior performance and durability.
2618 Alloy Forgings: We use domestic 2618 alloy forgings, ensuring superior strength and performance.Chrome Moly Wrist Pins: Premium Chrome Moly wrist pins come standard with our Standard Series Pistons. For select SKUs, we offer wrist pin upgrades to 9310 and Turbo Tuff/DLC alloys, providing additional durability.Exacting Ring Lands and Grooves: We adhere to strict standards for piston ring lands and grooves, resulting in enhanced ring seal and more power.Cam and Barrel Profiles: Our pistons boast cam and barrel (skirt) profiles that generate substantial power while being gentle on cylinder walls.Unique Fixturing: Manley’s unique fixturing allows for skirt turning and ring groove machining in a single operation, ensuring ultimate ring groove to skirt squareness.

Note: Only fit standard stroke 88mm with 150mm rods. The piston kit includes piston rings and piston pins as essential components.

8.5:1 DSM / 9.0:1 Evo Compression Ratio Pistons

10.0:1 DSM / 10.5:1 Evo Compression Ratio Pistons

Vehicle Fitment:

Lancer Evolution IV-IX 1996-2006

Eclipse GSX/GST 1992.5-1999

Galant VR-4 1992.5- 1992.12

Talon TSI 1992.5-1998

Laser RS 1992.5-1994
