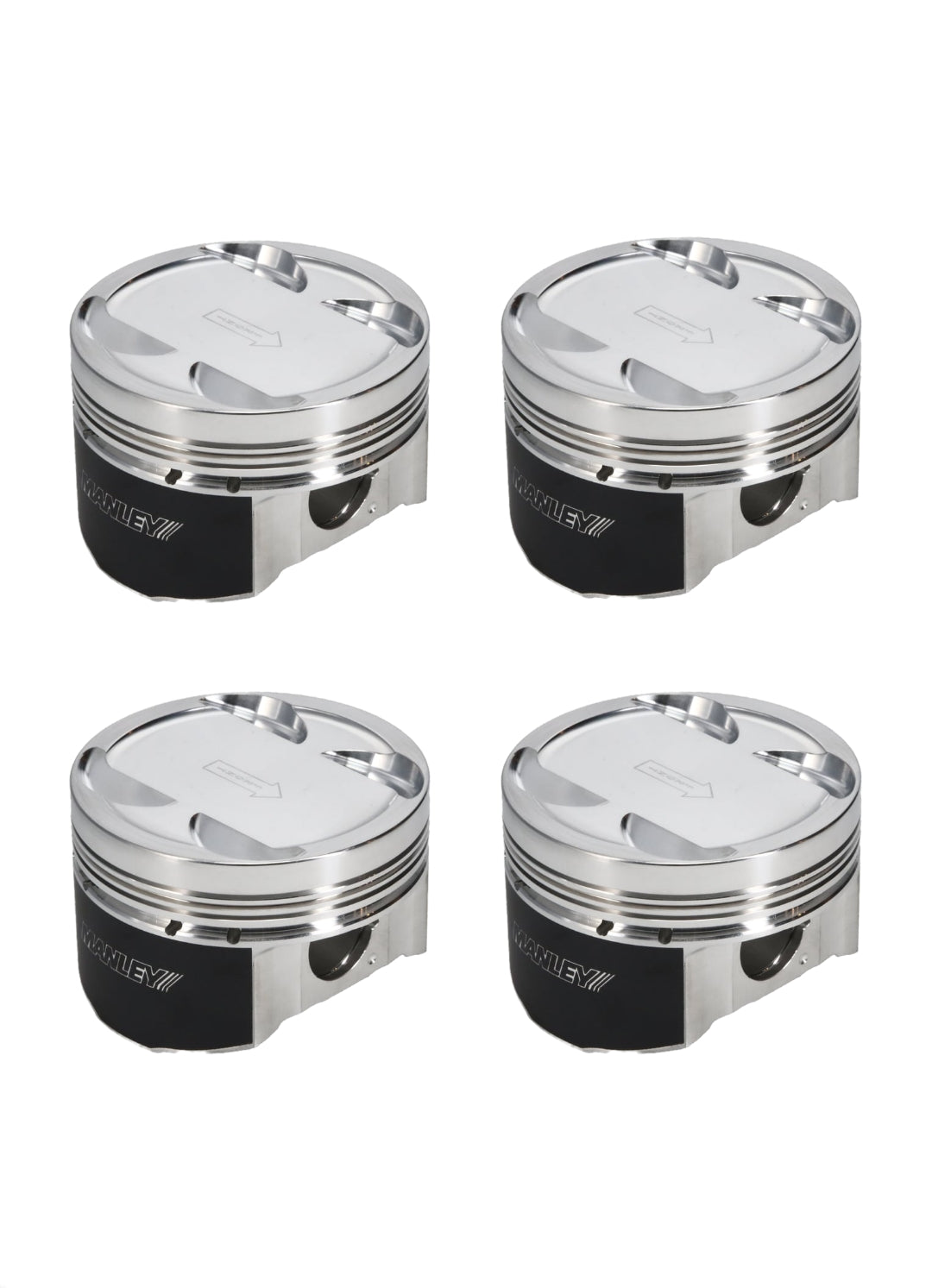

Manley Platinium Series Pistons Kit 2.3L (100mm Stroke & 150mm Rod) Evo 4-9/DSM 7-Bolt 4G63T

SKU:MAN-608000CE‑4

$875.59 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Experience ultimate performance with Manley Platinum Series Forged Pistons for the Lancer Evo 4-9 & DSM & 7-bolt 4G63T These pistons are expertly machined from high-strength 2618 material and designed to provide long-lasting durability. The offset wrist pin design ensures a quiet start-up while the unique "one fixturing" manufacturing method guarantees maximum horsepower by achieving perfect ring groove to skirt squareness. With both standard and extreme versions available, as well as round wire locks, premium chrome moly wrist pins, and top-quality steel ring sets included at no extra cost, you can trust Manley Pistons to deliver unbeatable results. Upgrade to 9310 alloy wrist pins for even greater performance.

Note: Only fit standard stroke 100mm with 150mm rods. The piston kit includes piston rings and piston pins as essential components.

8.5:1 DSM / 9.0:1 Evo Compression Ratio Pistons

Part Number	Pin	Weight Grams	Bore Size	Piston Ring Set	Dome Volume
608000C-4	STD	291	85mm	46850‑4	-22cc
608000CE-4	Extreme	291	85mm	46850‑4	-22cc
608005C-4	STD	295	85.5mm	46855‑4	-22cc
608005CE-4	Extreme	295	85.5mm	46855‑4	-22cc
608010C-4	STD	299	86mm	46860‑4	-22cc
608010CE-4	Extreme	299	86mm	46860‑4	-22cc
608015C-4	STD	300	86.5mm	46865‑4	-22cc
608015CE-4	Extreme	300	86.5mm	46865‑4	-22cc
608020C-4	STD	307	87mm	46870‑4	-22cc
608020CE-4	Extreme	307	87mm	46870‑4	-22cc

10.0:1 DSM / 10.5:1 Evo Compression Ratio Pistons

Part Number	Pin	Weight Grams	Bore Size	Piston Ring Set	Dome Volume
617000C-4	STD	298	85mm	46850‑4	-12cc
617000CE-4	Extreme	298	85mm	46850‑4	-12cc
617005C-4	STD	305	85.5mm	46855‑4	-12cc
617005CE-4	Extreme	305	85.5mm	46855‑4	-12cc
617010C-4	STD	313	86mm	46860‑4	-12cc
617010CE-4	Extreme	313	86mm	46860‑4	-12cc
617015C-4	STD	312	86.5mm	46865‑4	-12cc
617015CE-4	Extreme	312	86.5mm	46865‑4	-12cc
617020C-4	STD	320	87mm	46870‑4	-12cc
617020CE-4	Extreme	320	87mm	46870‑4	-12cc
