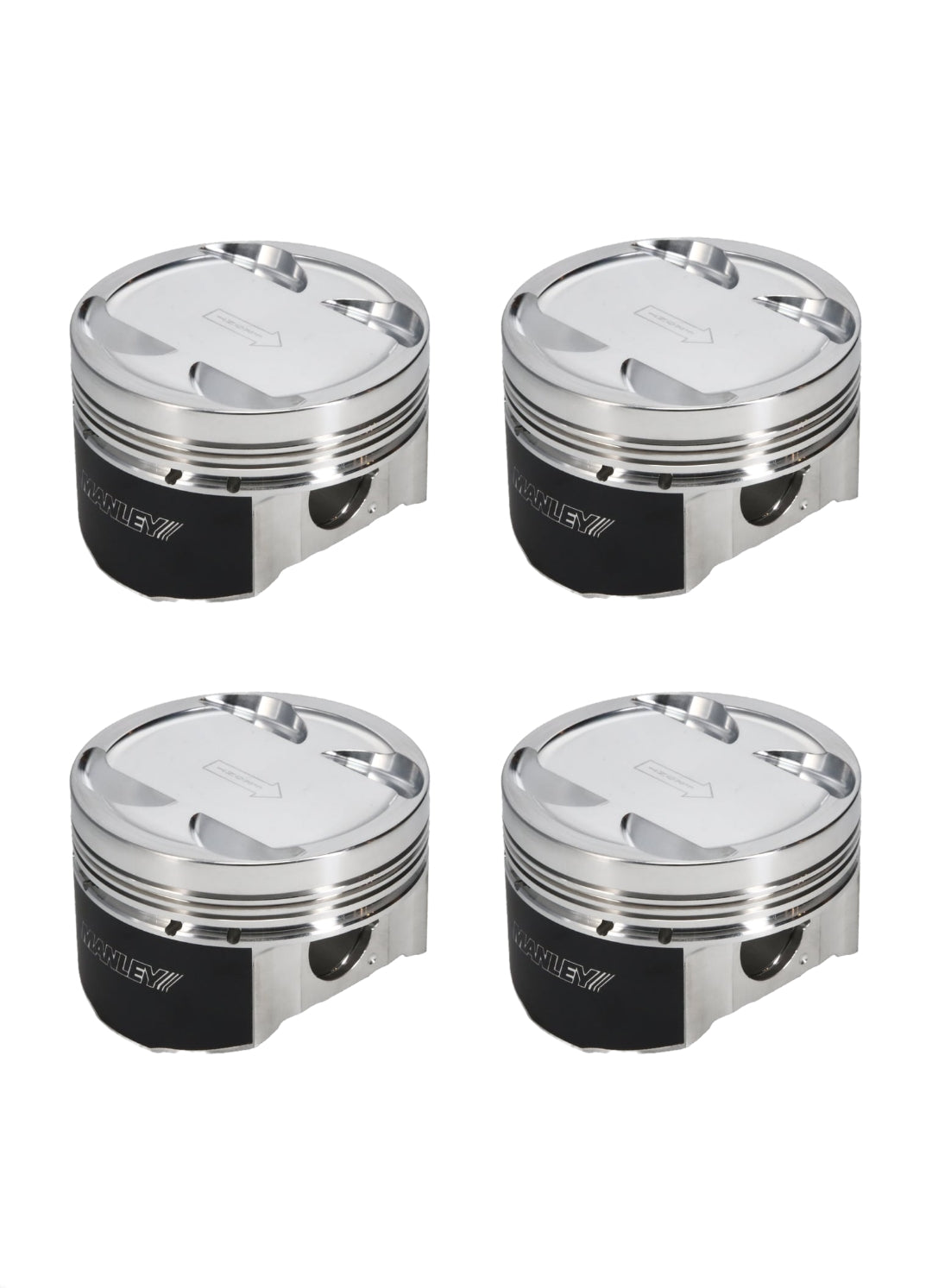

Manley Platinium Series Pistons Kit 94mm Stroke (2.2L) Evo X 4B11T
Manley Platinium Series Pistons Kit 94mm Stroke (2.2L) Evo X 4B11T
SKU:MAN-624005C-4
Couldn't load pickup availability
Experience ultimate performance with Manley Platinum Series Forged Pistons for the 94mm Stroke 2.2L Lancer Evo X 4B11T. These pistons are expertly machined from high-strength 2618 material and designed to provide long-lasting durability. The offset wrist pin design ensures a quiet start-up while the unique "one fixturing" manufacturing method guarantees maximum horsepower by achieving perfect ring groove to skirt squareness. With both standard and extreme versions available, as well as round wire locks, premium chrome moly wrist pins, and top-quality steel ring sets included at no extra cost, you can trust Manley Pistons to deliver unbeatable results. Upgrade to 9310 alloy wrist pins for even greater performance.
Note: Only fit 94mm 2.2L stroker application.
9.0:1 Compression Ratio Pistons
| Part Number | Compression Ratio | Pin | Weight Grams | Bore Size | Piston Ring Set | Dome Volume |
| 624000C-4 | 9.0:1 | STD | 308 | 86mm | 46860‑4 | -11cc |
| 624000CE-4 | 9.0:1 | Extreme | 308 | 86mm | 46860‑4 | -11cc |
| 624005C-4 | 9.0:1 | STD | 315 | 86.5mm | 46865‑4 | -11cc |
| 624005CE-4 | 9.0:1 | Extreme | 315 | 86.5mm | 46865‑4 | -11cc |
10.0:1 Compression Ratio Pistons
| Part Number | Compression Ratio | Pin | Weight Grams | Bore Size | Piston Ring Set | Dome Volume |
| 624100C-4 | 10.0:1 | STD | 327 | 86mm | 46860‑4 | -3.5cc |
| 624100CE-4 | 10.0:1 | Extreme | 327 | 86mm | 46860‑4 | -3.5cc |
| 624105C-4 | 10.0:1 | STD | 333 | 86.5mm | 46865‑4 | -3.5cc |
| 624105CE-4 | 10.0:1 | Extreme | 333 | 86.5mm | 46865‑4 | -3.5cc |
Vehicle Fitment:
Lancer Evolution X 2008-2015
