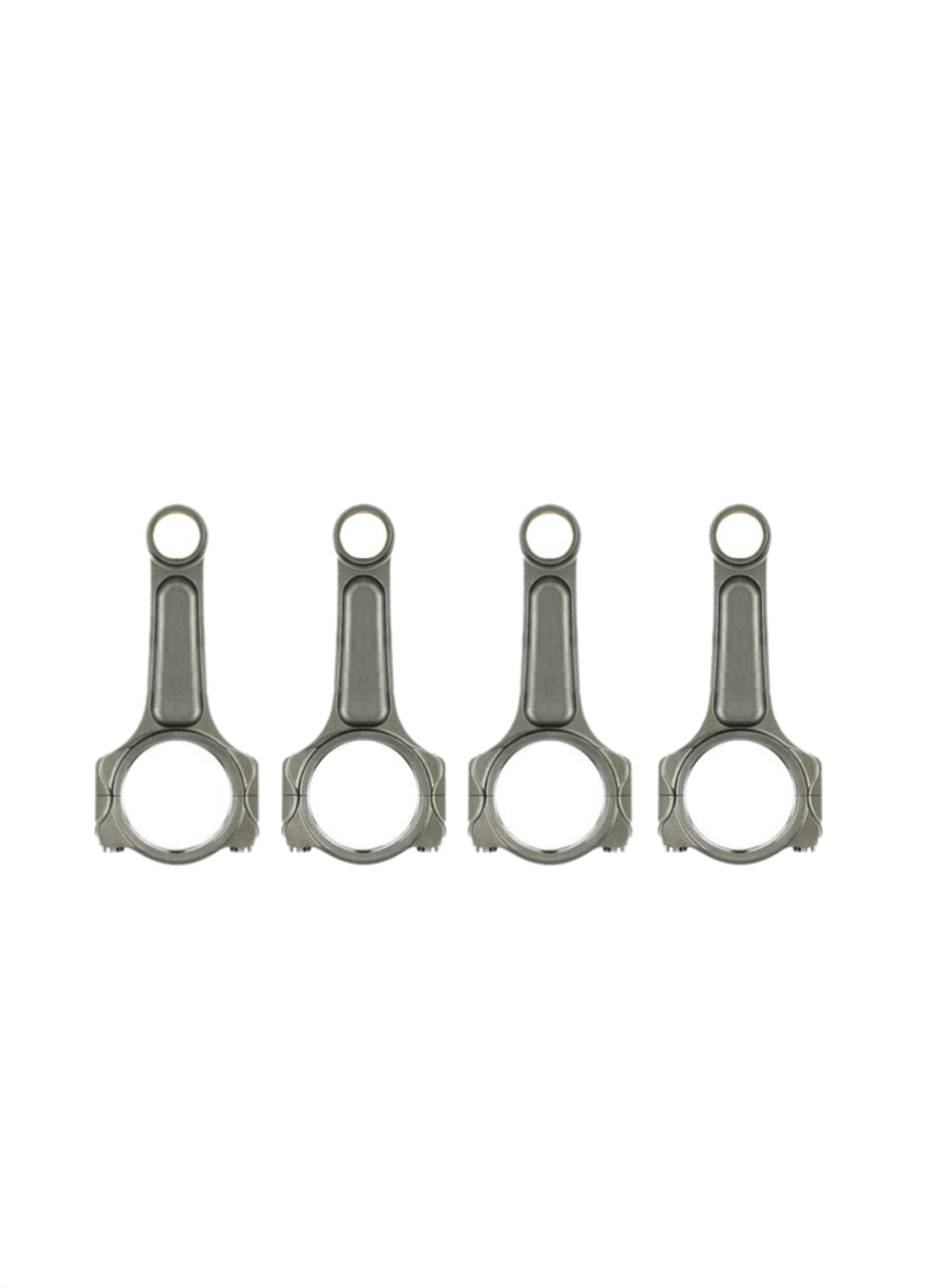

Manley I-Beam Turbo Tuff Rods 7-Bolt 4G63 Evo/DSM
Manley I-Beam Turbo Tuff Rods 7-Bolt 4G63 Evo/DSM
SKU:MAN-14403-4
Regular price
$1,114.29 USD
Regular price
Sale price
$1,114.29 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Manley's Pro Series I-Beam Turbo Tuff rods for the 7-Bolt 4G63 Evo and DSM are offered in both standard 4340 material and upgraded 300M alloy to handle an additional 400 HP. Choose from 3/8" ARP 2000 rod bolts or upgrade to the stronger ARP 625+ bolts.
Note: Each set contains four Manley I-Beam Turbo Tuff Rods & Bolts and comes with Manley assembly lubricant.
Vehicle Fitment:
Lancer Evolution I-IX 1992-2006
Eclipse GSX/GST 1992.5-1999
Galant VR-4 1992.5-1992.12
Talon TSI 1992.5-1998
Laser RS 1992.5-1994
4G63 7-Bolt Engines Evo/DSM
| Part Number | Grams Weight | Big End Bore | Center to Center Length | Length | Pin End Bore | Wrist Pin Diameter |
|
14403-4 14403R6-4 |
630 | 1.890in | 5.905in | 150mm | .8671in | .866in |
|
15403-4 15403R6-4 |
675 | 1.890in | 5.905in | 150mm | .8671in | .866in |
|
14400-4 14400R6-4 |
625 | 1.890in | 5.905in | 150mm | .8671in | .866in |
|
14421-4 14421R6-4 |
645 | 1.890in | 6.142in | 156mm | .8671in | .866in |
|
14422-4 14422R6-4 |
655 | 1.890in | 6.378in | 162mm | .8671in | .866in |
