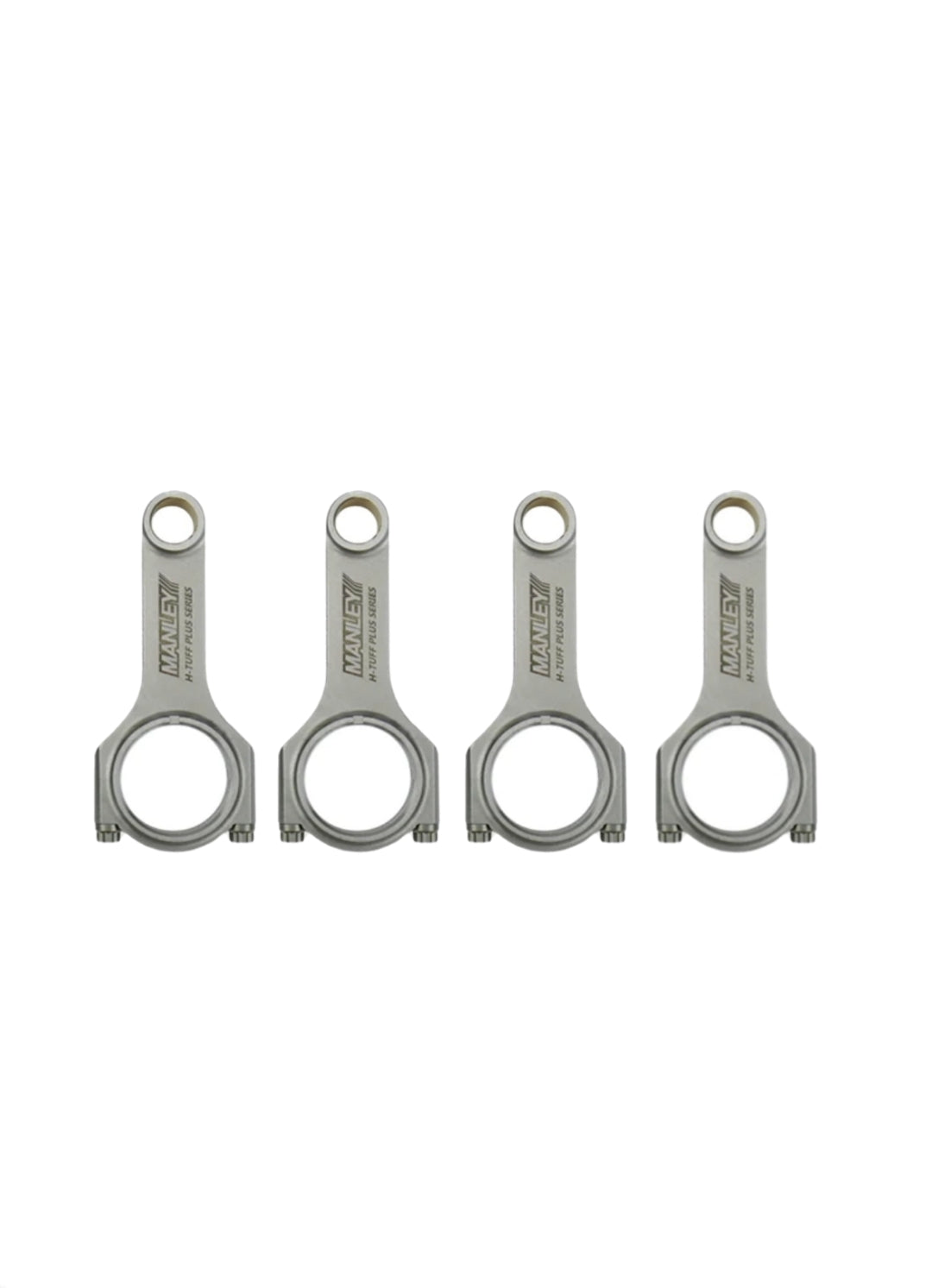

Manley I-Beam Turbo Tuff Rods 6-Bolt 4G63 DSM
Manley I-Beam Turbo Tuff Rods 6-Bolt 4G63 DSM
SKU:MAN-14413-4
Regular price
$1,028.90 USD
Regular price
Sale price
$1,028.90 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Manley Performance Pro Series I-Beam Turbo Tuff rods designed for the 6-Bolt 4G63 DSM come with 3/8" ARP 2000 rod bolts, with the option to upgrade to ARP 625+ bolts for enhanced strength.
Note: This set includes four rods plus Manley assembly lube for easy installation. Recommended bearing to be used: ACL 4B1146/H or Clevite CB1120AL
Vehicle Fitment:
Eclipse GSX/GST 1990-1992.5
Galant VR-4 1990-1992
Talon TSI 1990-1992.5
Laser RS 1990-1992.5
4G63 6-Bolt Engines DSM
| Part Number | Grams Weight | Big End Bore | Center to Center Length | Length | Pin End Bore | Wrist Pin Diameter |
|
14413-4 14413R6-4 |
695 | 1.890in | 5.905in | 150mm | .8281in | .827in/21mm |
|
14407-4 14407R6-4 |
685 | 1.890in | 5.905in | 150mm | .8671in | .866in/22mm |
|
14426-4 |
700 | 1.890in | 6.142in | 156mm | .8671in | .866in/22mm |
