Manley H-Tuff Plus Steel Rods Evo X 4B11T
Manley H-Tuff Plus Steel Rods Evo X 4B11T
SKU:MAN-15029R6-4
Couldn't load pickup availability

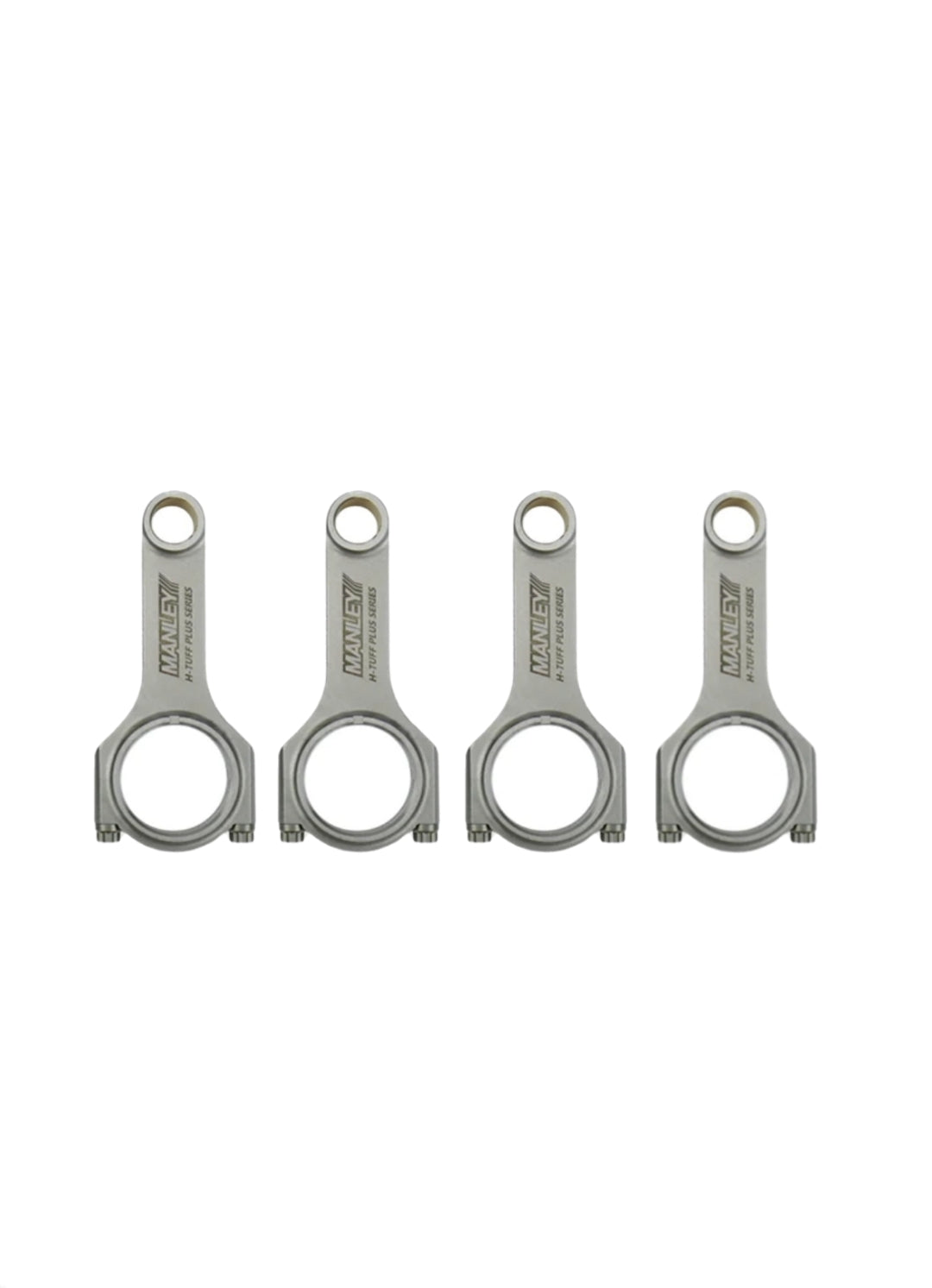

Manley's H-Tuff Plus Steel Rods for the Evo X 4B11T offer a wider beam than standard H-Beam rods, allowing for increased crank horsepower. These high-end rods utilize upgraded ARP 625+ bolts and surpass the capabilities of ARP 2000 bolts.
Note: Each set contains four Manley H-Tuff Plus Rods & Bolts and comes with Manley assembly lubricant.
Info:
All Manley connecting rod sets, are weight matched to ± 1.5 grams, big and small end bores are final honed to a tolerance of ± .0002”, critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by our final inspection department; thus rendering a finished product that is second to none.
Vehicle Fitment:
Lancer Evolution X 2008-2015
4B11T Evo X
| Part Number | Grams Weight | Big End Bore | Center to Center Length | Pin Bore | Wrist Pin Diameter |
|
15029R6-4 |
620 | 2.165in | 5.656in | .9063in | .9055in (23mm) |
