Haltech IC-7 Digital Dash Kit Size: 7in
Haltech IC-7 Digital Dash Kit Size: 7in
SKU:HT-067010
Regular price
$1,195.00 USD
Regular price
Sale price
$1,195.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

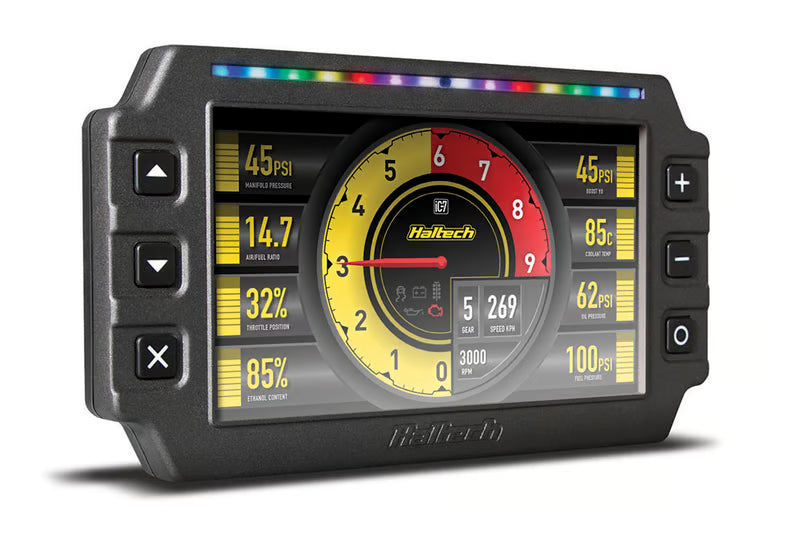

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.
Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.
Featuring custom screen displays,I/O sharing, datalogging, auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network.
- Ideal replacement for individual analogue gauge clusters.
- Easy to install and configure.
- User adjustable brightness control with automatic dimming.
- User configurable channels, units and alarms.
- User definable Inputs & Outputs
- 9 x Analog Voltage Inputs (AVI)
- 3 x Digital Pulsed Inputs (DPI)
- 1 x Tachometer input
- 4 x Digital Pulsed Outputs (DPO)
- 14 programmable, seven colour shift light LEDs.
- On-board datalogging (512MB)
- Controlled via easily accessible, face-mounted control buttons.
- Configuration via Haltech software and USB cable.
- IP64 (Dust-tight and protected against water splashes).
Suits:
All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following aftermarket ECU brands: Link, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

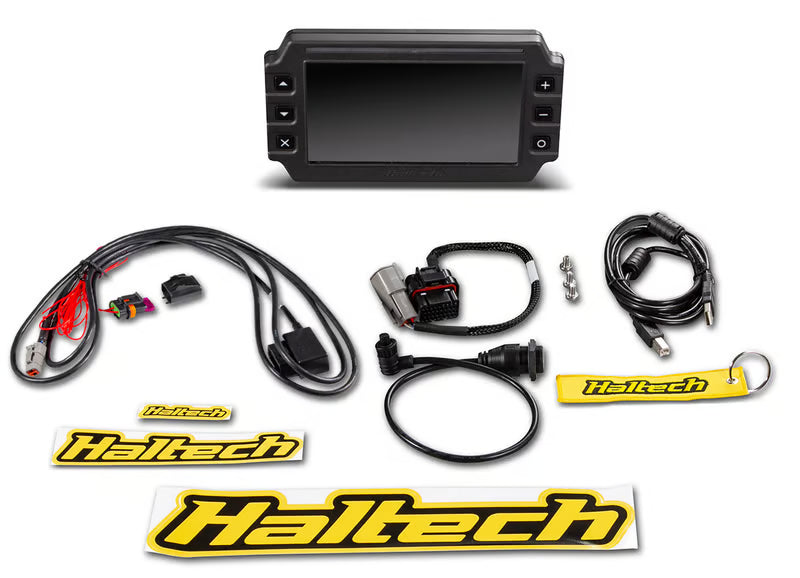

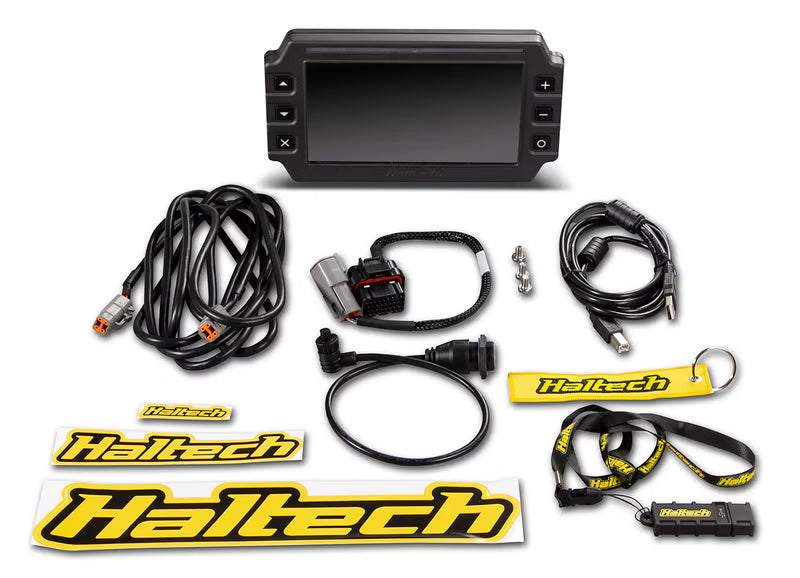

Includes:
- Haltech iC-7 Display Dash
- 34 Pin main connector harness (including spare pins for input wiring)
- DTM-4 to DTM-4 CAN extension cable 3.0m (118in)
- USB to M5 right angle cable
- USB Cable, Mounting Screws
- Quick Start Guide
- Haltech stickers
- Fabric keyring tag
