GSC Beehive Spring Set with Titanium Retainer for the 4B11T (5042)
GSC Beehive Spring Set with Titanium Retainer for the 4B11T (5042)
SKU:GSC-5042
Regular price
$378.98 USD
Regular price
Sale price
$378.98 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

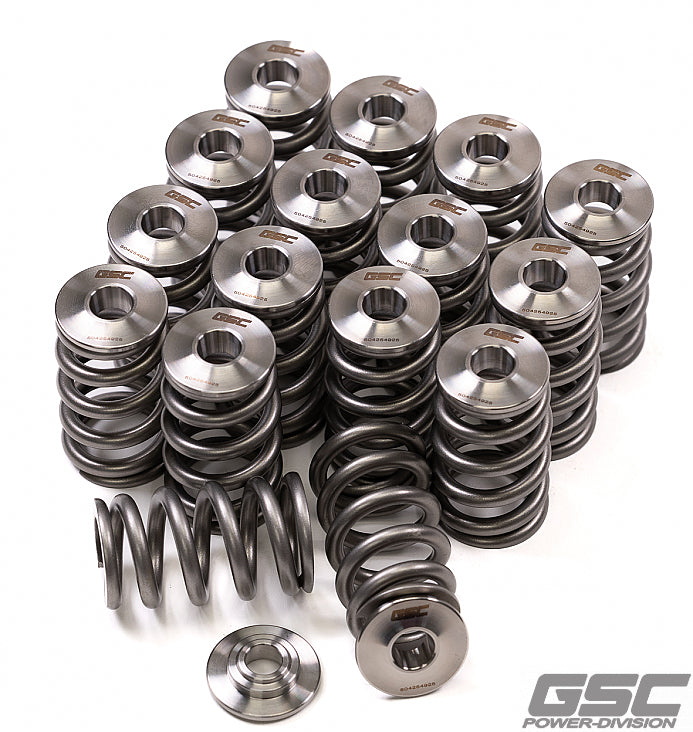

The GSC Power-Division Beehive Spring Kit with Titanium Retainers for the Mitsubishi Lancer Evolution X 4B11T includes 16 titanium retainers and 16 beehive valve springs. Our beehive spring utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control.
Verify the installation heights of your valve springs here.
- IN: 75 lbs @ 1.350" / EX: 72 lbs @ 1.361" install height
- IN: 217 lbs @ 0.917" / EX: 214 lbs @ 0.928"
| GSC5042 Beehive Valve Spring Kit with Ti Retainer for 4B11T | |||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 11.0mm Lift | Maximum Valve Lift (in) |
| Beehive | 0.800 | 1.350 / 1.361 | 75 / 72 | 217lbs @ 0.917" 214lbs @ 0.928" |
0.480 |
- Max RPM: 9,500
- Max boost: 40 psi
- Up to 12.2mm lift cams
