GSC 5073 High Pressure Conical Spring Set with Titanium Retainer & Chromoly Spring Seat Subaru Turbo EJ

GSC 5073 High Pressure Conical Spring Set with Titanium Retainer & Chromoly Spring Seat Subaru Turbo EJ

GSC-5073

$517.85 USD
$517.85 USD
Sale Sold out
Shipping calculated at checkout.

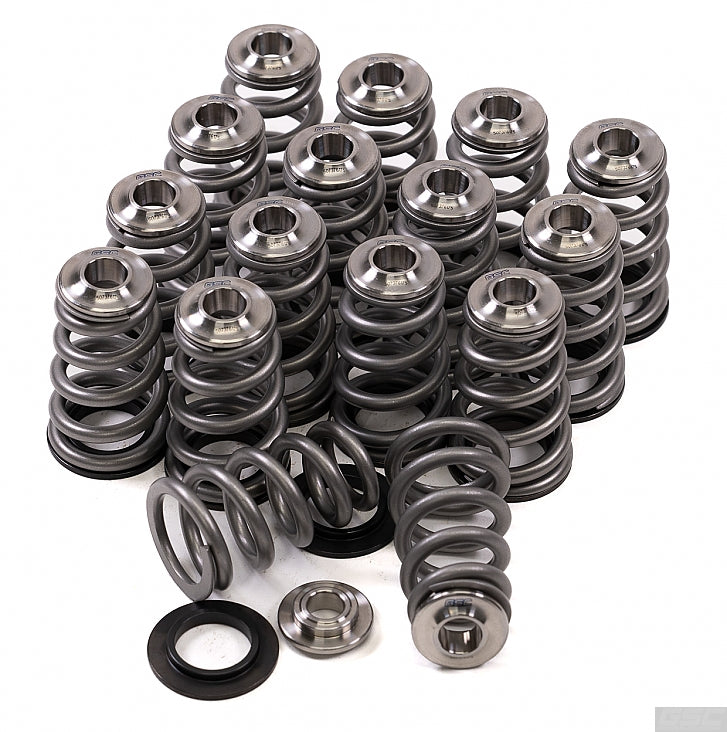

The GSC Power-Division High Pressure Conical Valve Spring with Ti Retainer for Subaru Turbo EJ Platforms includes

  •  16 Titanium Retainers
  • 16 Chromoly Valve Spring Seats.
  • 16 High Pressure Conical Valve Springs

GSC 5073 conical valve springs deliver superior harmonic damping compared to traditional designs, making them ideal for high-RPM and high-boost Subaru turbo applications. The varying coil diameter naturally reduces valvetrain shock and stress, extending component life under extreme conditions. Multi-step heat treatment and super-finished surfaces ensure reliability when pushing aggressive cam profiles and elevated boost levels.



GSC5073 High Pressure Conical Valve Spring Kit with Ti Retainer for the Subaru Turbo EJ
Setup Coil Bind (in) Install Height (in) Seat Pressure (lbs) Open Pressure, 11.50mm lift Maximum Valve Lift (in)
HP Conical 0.787" 1.318" 104 254lbs @ 0.866" 0.455"
  • Max RPM: 10,000 RPM
  • Max boost: 50 psi
  •  Caution: May contain chemicals linked to cancer and reproductive harm (CA Prop 65). Visit Prop 65 Warnings & OEHHA websites for more info.
