Eagle H-Beam Rods 4B11 Evo X

Eagle H-Beam Rods 4B11 Evo X

EAG-CRS5659M3D

$419.16 USD
$419.16 USD
Sale Sold out
Shipping calculated at checkout.

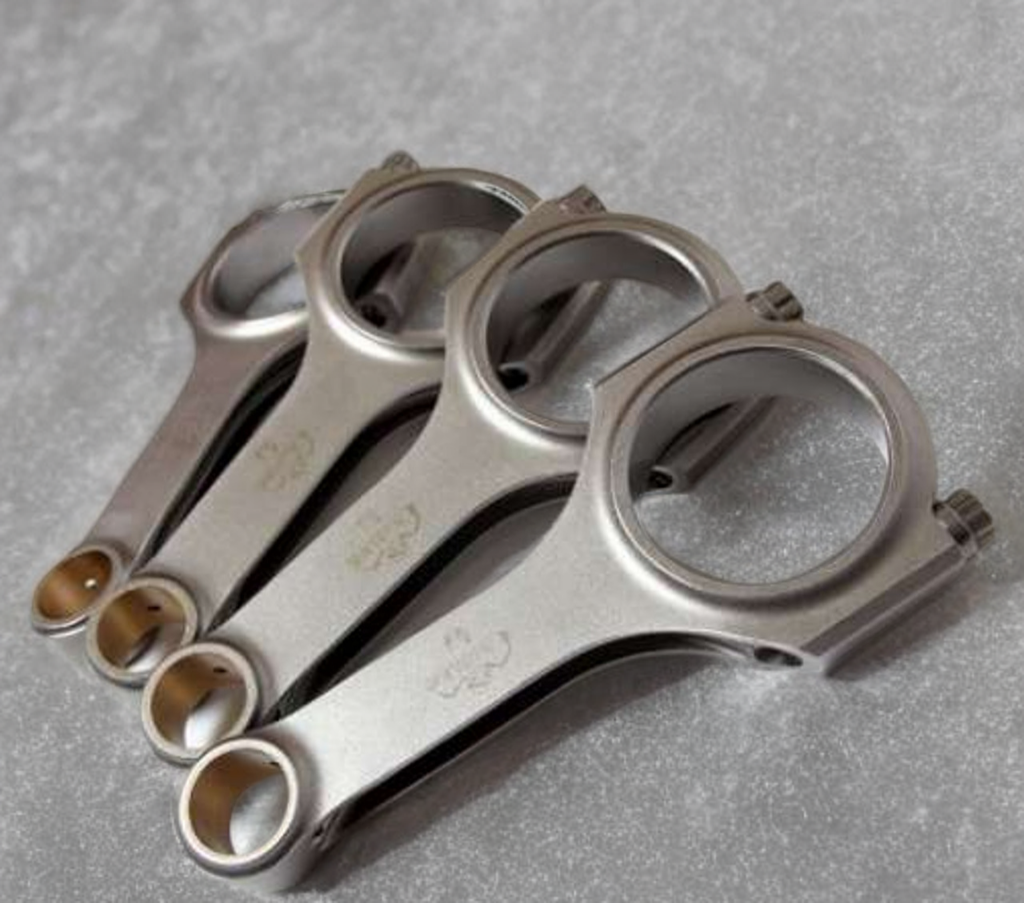

Eagle forged H-Beam rods made from 4340 steel for the 4B11 Evo X, offered with your choice of ARP 2000 or ARP 625+ rod bolts.

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.

IMPORTANT: Torque to 43 ft-lbs, ARP moly lube ONLY!




Highlights:

  • bolts: 3/8" ARP 2000
  • material: forged 4340 steel
  • center to center length: 5.659"
  • pin size: 0.906"
  • pin end width: 0.861"
  • rod journal: 2.046"
  • housing bore: 2.1655"
  • big end width: 0.861"
  • typical weight: 565g
  • bushed for full-floating piston pin



  •  Caution: May contain chemicals linked to cancer and reproductive harm (CA Prop 65). Visit Prop 65 Warnings & OEHHA websites for more info.
