Eagle Forge Crankshaft 4G63 6-Bolt DSM
Eagle Forge Crankshaft 4G63 6-Bolt DSM
SKU:EAG-2034655900A6
Regular price
$809.99 USD
Regular price
Sale price
$809.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

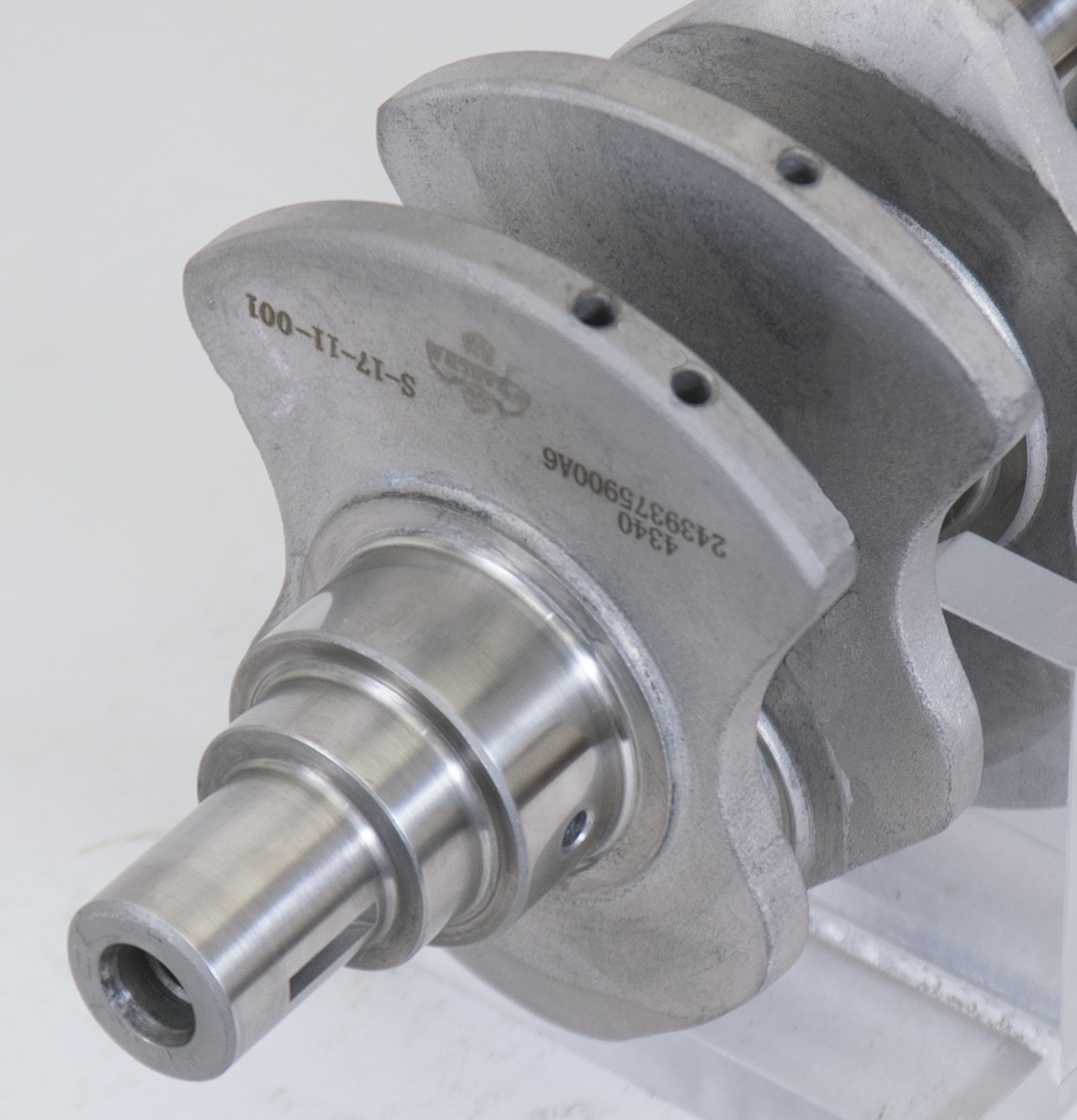

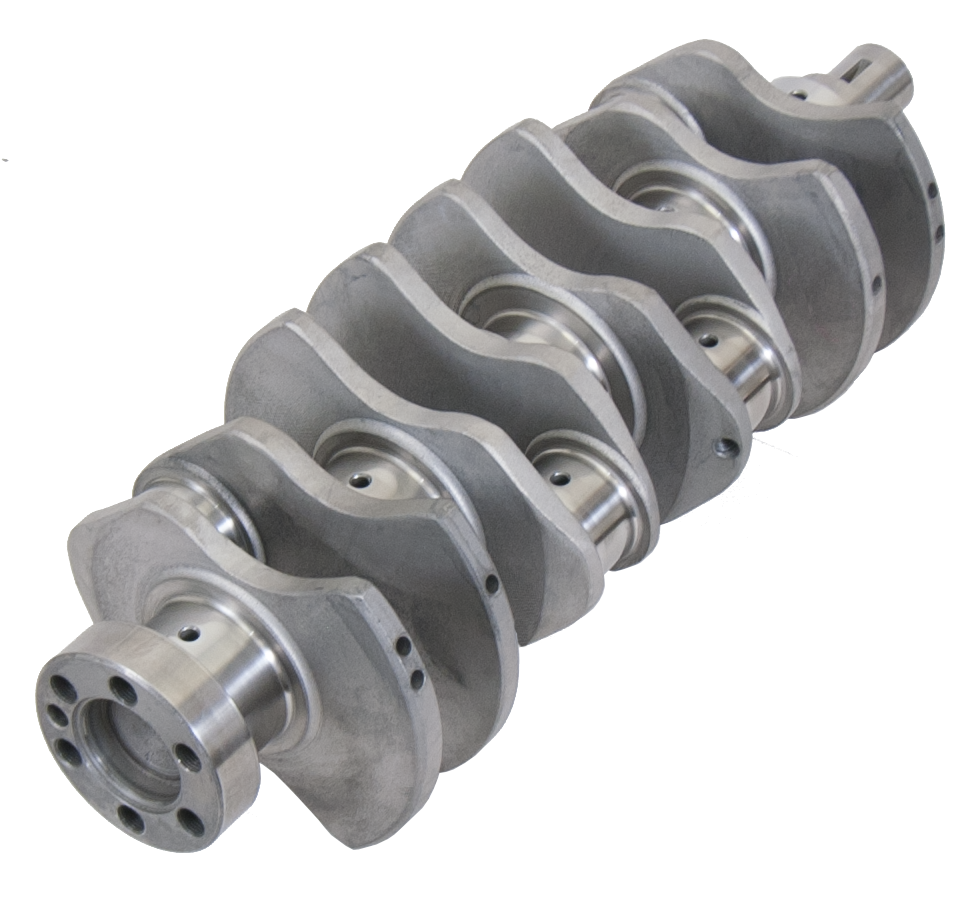

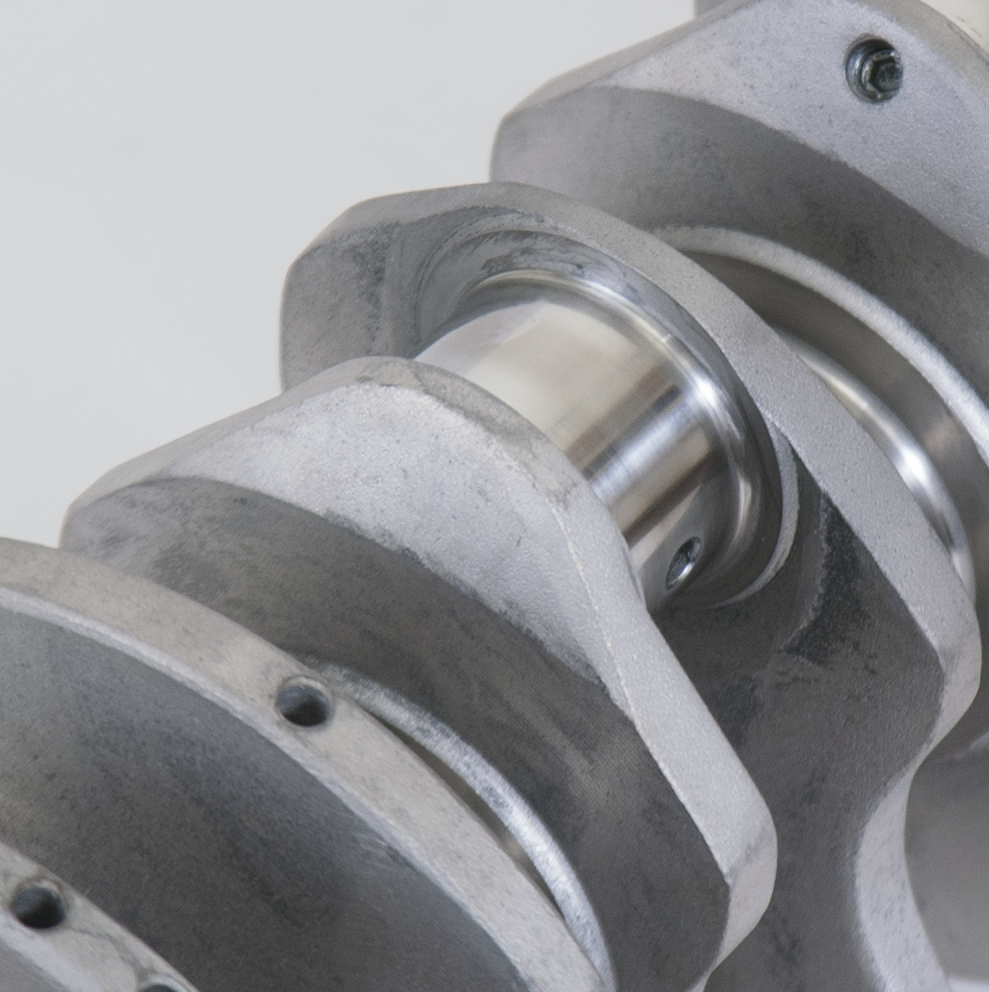

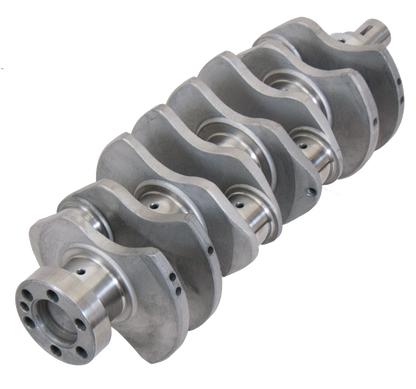

Eagle manufactures forged crankshafts from 4340 steel designed for 4G63 6-bolt DSM and GVR4 models. They come in three different stroke lengths: 88mm, 94mm, and 100mm.
Eagle forged 4340 steel cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to < 2 ra. Intended for the most demanding applications.
NOTE: Crankshaft must be balanced to match your specific rods and pistons.
Highlights:
- material: forged 4340 steel
- intended balance: internal
- target bobweight: call
- stroke: 3.937"
- rod journal: 1.771"
- rod journal width: 1.13"
- main journals: 2.244"
- minimum rod length: 5.900"
- typical weight: 33 lbs.
- rear seal diameter: call
- snout diameter: 1.26"
- flywheel bolts: 6
