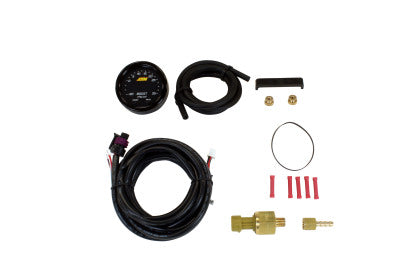

AEM X- Series Boost Gauge

X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.

Options:

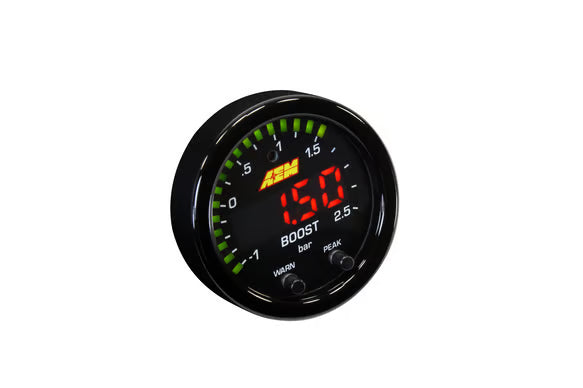

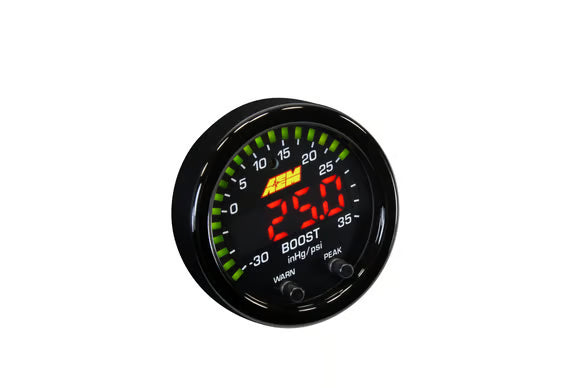

•  AEM's 30-0306 X-Series -30in/Hg~35PSI / -1~2.5BAR Digital Boost Display gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate boost pressure readouts up to 35 PSI or 2.5 BAR in their high performance vehicle.

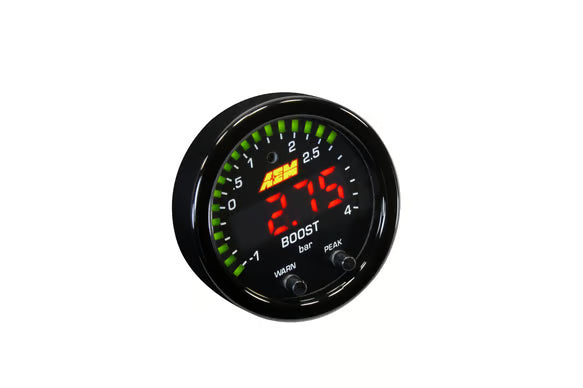

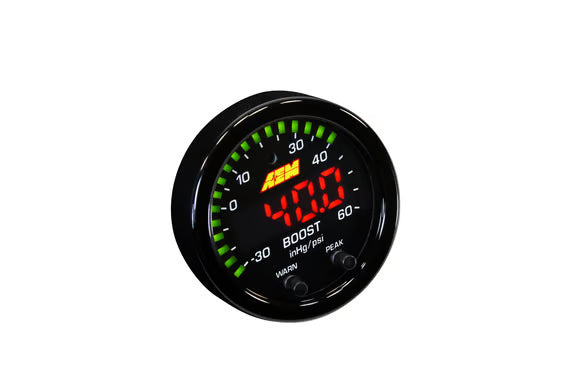

• AEM's 30-0308 X-Series -30in/Hg~60PSI / -1~4BAR Digital Boost Display gauge combines incredible looks, increased readability, and a multitude of new, easy-to-use features! It is a must for users who want highly accurate boost pressure readouts up to 60 PSI or 4 BAR in their high-performance vehicle.

Features:

• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Programmable center LED is 87% larger than original AEM gauges
• 24 green outer LEDs for quick reference to engine parameter
• User selectable standard or metric display ( -30in/Hg~60PSI / -1~4BAR)
• Peak/Recall via gauge face buttons
• User selectable threshold warnings (excl. Volts)
• Optional silver bezel with white faceplate(s) accessory kits available (sold separately)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• Auto dimming sensor delivers ideal display brightness
• Positive locking connectors provide secure connection
